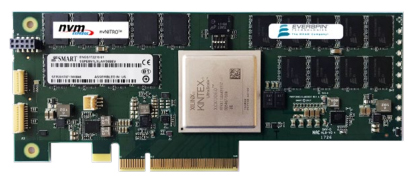

ES1GB-N03 nvNITRO™ PCIe HHHL Accelerator Card


The ES1GB-N03 nvNITRO™ Accelerator Card is a PCIe HHHL card based on Everspin’s STT-MRAM products and an NVMe protocol that delivers greater than 1.5 Million random write, write/read or read IOPS with 6μs latency.  It supports full data integrity on a power failure and virtually unlimited endurance using Everspin nvNITRO™ Accelerators.


Highlights	Applications
•  1GB storage capacity	•  Power Fail Safe Data & Metadata Cache/Buffer
•  PCIe Gen3 x8, half-height, low profile card	•  Burst Data Deserializer
•  NVMe 1.1+ in block mode	•  Database and Application Accelerators
•  Memory mapped IO (MMIO) in byte mode	•  Storage Accelerator For All Flash Storage
•  Ultra-low access latency (as low as 2μS)	Array (FSA)
•  Consistent latency (short tail)	•  File System Accelerator (Parallel & Serial)
•  Customer-defined features using own RTL	•  Power Fail Safe Software Defined Storage
with programmable FPGA	•  Power Fail Safe Software and NVMe RAID
•  General purpose accelerator development	•  OLTP Log Cache Acceleration
platform with programmable onboard FPGA,	•  Storage Fabric (Network) Accelerators
Network SERDES, SATA, SODIMM etc.	•  Shared Remote Persistent Memory
•  Development license for NVMe core IP
