Magnetic Random Access Memory ( MRAM )

Magnetoresistive random-access memory (MRAM) is a non-volatile random-access memory technology available today that began its development in the 1990s.
Unlike conventional RAM chip technologies, data in MRAM is not stored as electric charge or current flows, but by magnetic storage elements
MRAM has similar performance to SRAM, similar density to DRAM but much lower power consumption than DRAM,
It is currently in production by Everspin,

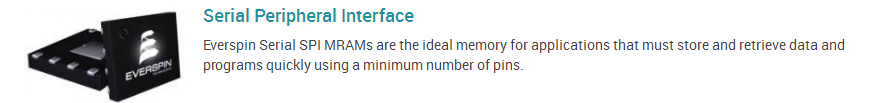

Serial Peripheral Interface
Part Number Density Org. Pkg Voltage Temp MOQ /Tray MOQ / T&R Download
MR25H40CDC 4Mb 512Kx8 8-DFN 3.3V -40℃ to +85℃ 1,140 4,000 Contact Us
MR20H40CDF 4Mb 512Kx8 8-DFN sf 3.3V -40℃ to +85℃ 1,140 4,000 Contact Us
MR25H40CDF 4Mb 512Kx8 8-DFN sf 3.3V -40℃ to +85℃ 1,140 4,000 Contact Us
MR25H40MDF 4Mb 512Kx8 8-DFN sf 3.3V -40℃ to +125℃ 1,140 4,000 Contact Us
MR25H10CDC 1Mb 128Kx8 8-DFN 3.3V -40℃ to +85℃ 1,140 4,000 Contact Us
MR25H10MDC 1Mb 128Kx8 8-DFN 3.3V -40℃ to +125℃ 1,140 4,000 Contact Us
MR25H10CDF 1Mb 128Kx8 8-DFN sf 3.3V -40℃ to +85℃ 1,140 4,000 Contact Us
MR25H10MDF 1Mb 128Kx8 8-DFN sf 3.3V -40℃ to +125℃ 1,140 4,000 Contact Us
MR25H256CDC 256Kb 32Kx8 8-DFN 3.3V -40℃ to +85℃ 1,140 4,000 Contact Us
MR25H256MDC 256Kb 32Kx8 8-DFN 3.3V -40℃ to +125℃ 1,140 4,000 Contact Us
MR25H256CDF 256Kb 32Kx8 8-DFN sf 3.3V -40℃ to +85℃ 1,140 4,000 Contact Us
MR25H256MDF 256Kb 32Kx8 8-DFN sf 3.3V -40℃ to +125℃ 1,140 4,000 Contact Us
PS : If you need KGD of MRAM, please contact us!
